OUR OPERATING MODULES AND OPERATING CONTROLLERS

are developed and produced individually for your project.

As an established partner for numerous industries (energy technology, refrigeration/air-conditioning technology, catering technology, transport systems, medical technology, food industry), we offer operating modules/operating controllers tailored to your requirements - optionally and on request in different screen sizes, memory capacity, interfaces, etc.

BEDIENMODULE

EINFACHE BEDIENUNG UND ANZEIGE

2,4“ / 3,5“ / 4,3“ OPERATING MODULES

EASY TO OPERATE

Our cost-efficient operating modules in 2.4 / 3.5 and 4.3 inches offer brilliant displays with touch function. They are ideal for industry, medical technology and smart home solutions.

Functions:

// Capacitive touch panel for precise operation
// Brilliant and robust displays

Areas of application:

Control units, displays, handheld devices and more - our displays are easy to integrate for many systems and offer intuitive operation in any application.

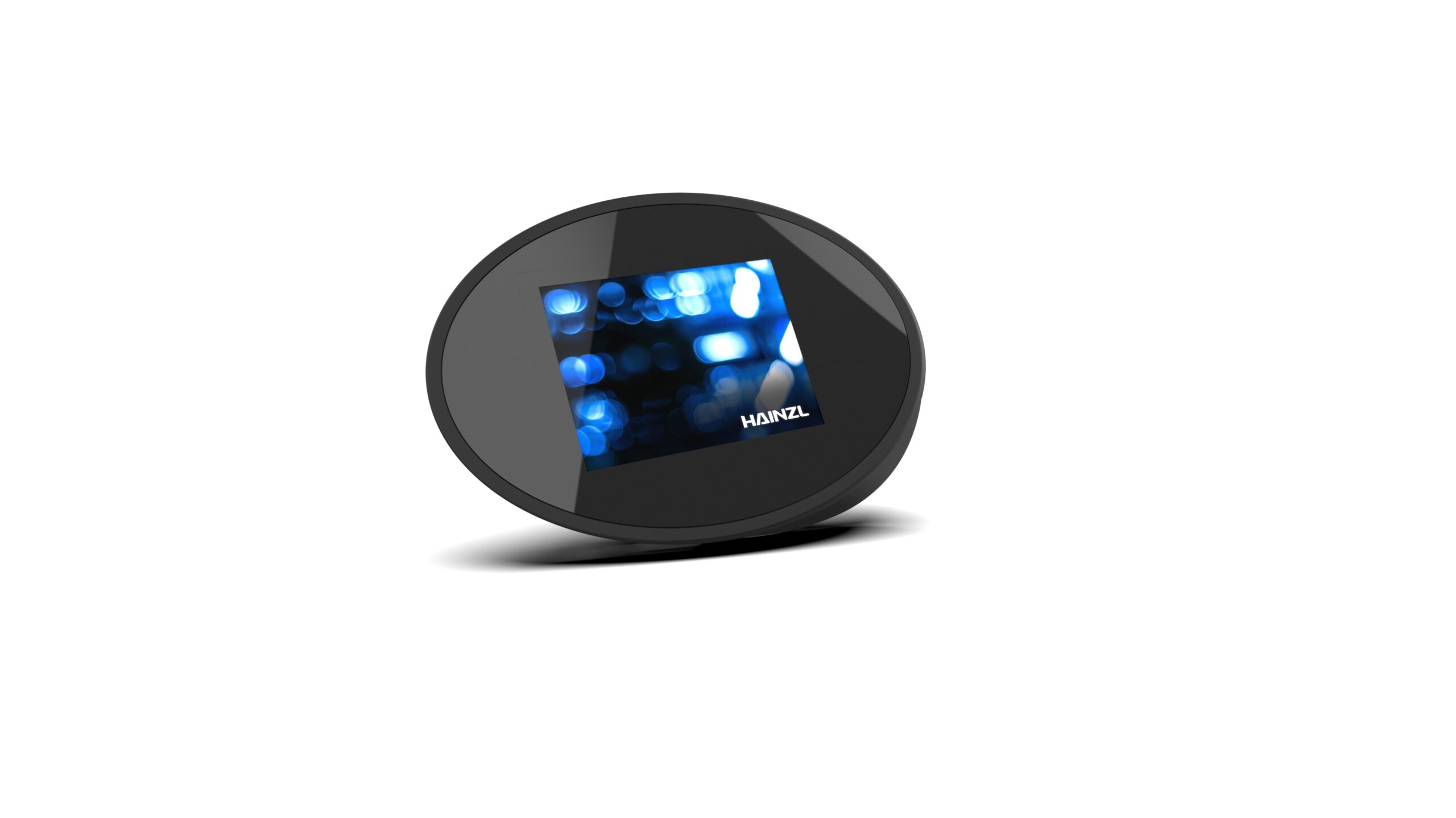

3,5“ OPERATING MODULES

WITH LINUX

Our compact 3.5-inch operating controller is based on a powerful processor and supports a fully functional Linux operating system.

Technical highlights

// Display: 3.5-inch TFT with capacitive touch
// Processor: Quad-core up to 1 GHz
// Memory: 256 MB DDR3L RAM, expandable up to 2 GB
// Interfaces: Ethernet, USB, CAN bus, UART, SPI, I²C, HDMI and LVDS
// Power supply: 12-30 VDC

Areas of application

Thanks to the Linux system, it offers high flexibility and easy adaptation to customer-specific requirements.
Typical areas of application: Food technology, energy technology, ventilation technology

3,5“ OPERATING MODULES

WITH LINUX

Our compact 3.5-inch operating controller is based on a powerful processor and supports a fully functional Linux operating system.

Technical highlights

// Display: 3.5-inch TFT with capacitive touch
// Processor: Quad-core up to 1 GHz
// Memory: 256 MB DDR3L RAM, expandable up to 2 GB
// Interfaces: Ethernet, USB, CAN bus, UART, SPI, I²C, HDMI and LVDS
// Power supply: 12-30 VDC

Areas of application

Thanks to the Linux system, it offers high flexibility and easy adaptation to customer-specific requirements.
Typical areas of application: Food technology, energy technology, ventilation technology

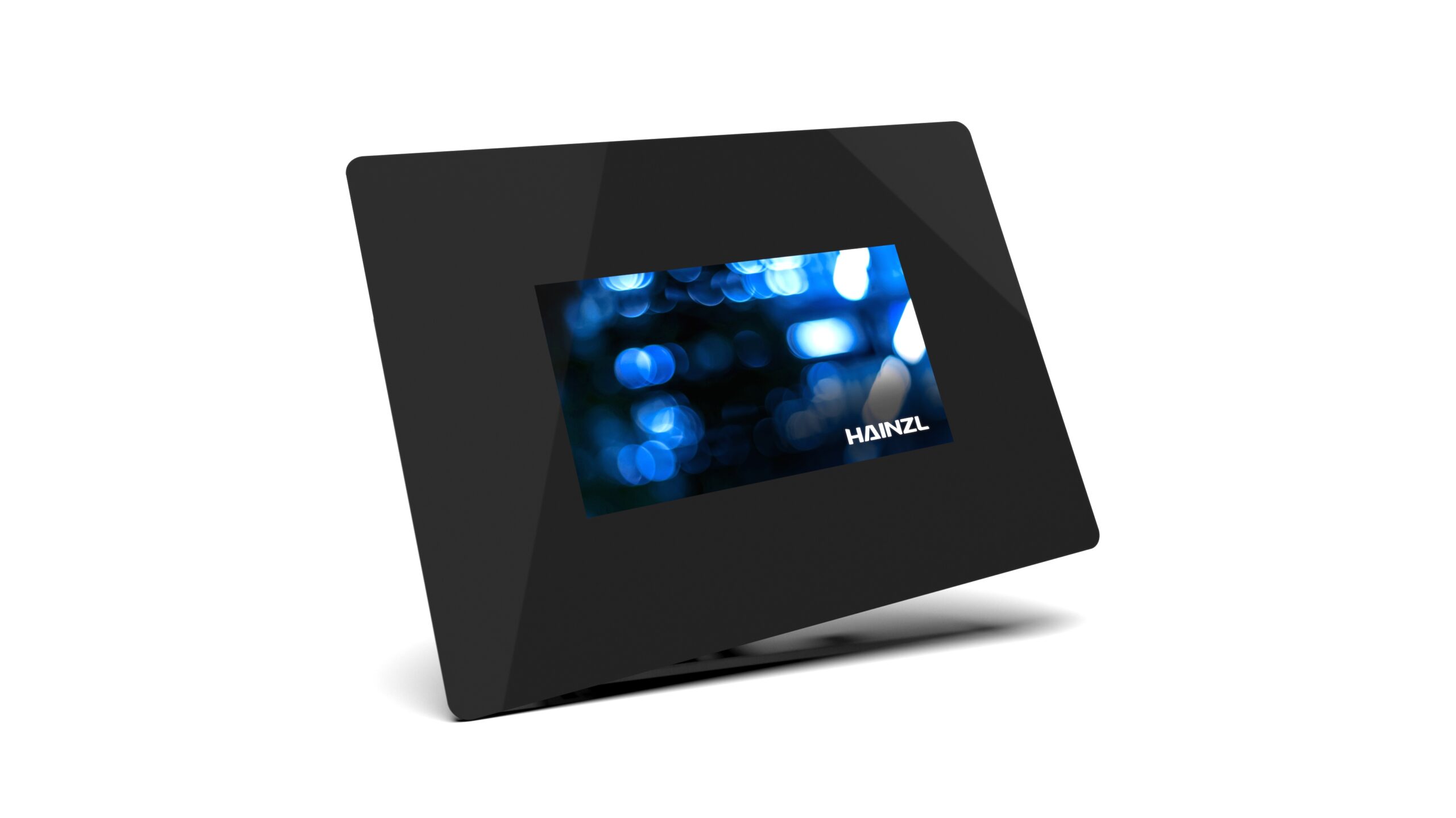

5“ OPERATING MODULES

WITH LINUX FOR SMART CONTROL SYSTEMS

Equipped with a powerful processor and a Linux base system, it enables flexible customization and simple operation.

Technical highlights

// Display: 5-inch TFT with capacitive touch
// Processor: Quad-core up to 1.2 GHz
// Memory: 512 MB DDR4, expandable up to 2 GB, 4 GB flash
// Interfaces: Ethernet, USB, RS485
// Power supply: 12-30 VDC

Areas of application

The system is versatile and can be seamlessly integrated into modern control systems. Thanks to the flexible Linux system, it can be easily adapted to customer-specific requirements.
Typical application examples: Production machines, medical devices, catering systems, water and waste water technology

5“ OPERATING MODULES

WITH LINUX FOR SMART CONTROL SYSTEMS

Equipped with a powerful processor and a Linux base system, it enables flexible customization and simple operation.

Technical highlights

// Display: 5-inch TFT with capacitive touch
// Processor: Quad-core up to 1.2 GHz
// Memory: 512 MB DDR4, expandable up to 2 GB, 4 GB flash
// Interfaces: Ethernet, USB, RS485
// Power supply: 12-30 VDC

Areas of application

The system is versatile and can be seamlessly integrated into modern control systems. Thanks to the flexible Linux system, it can be easily adapted to customer-specific requirements.
Typical application examples: Production machines, medical devices, catering systems, water and waste water technology

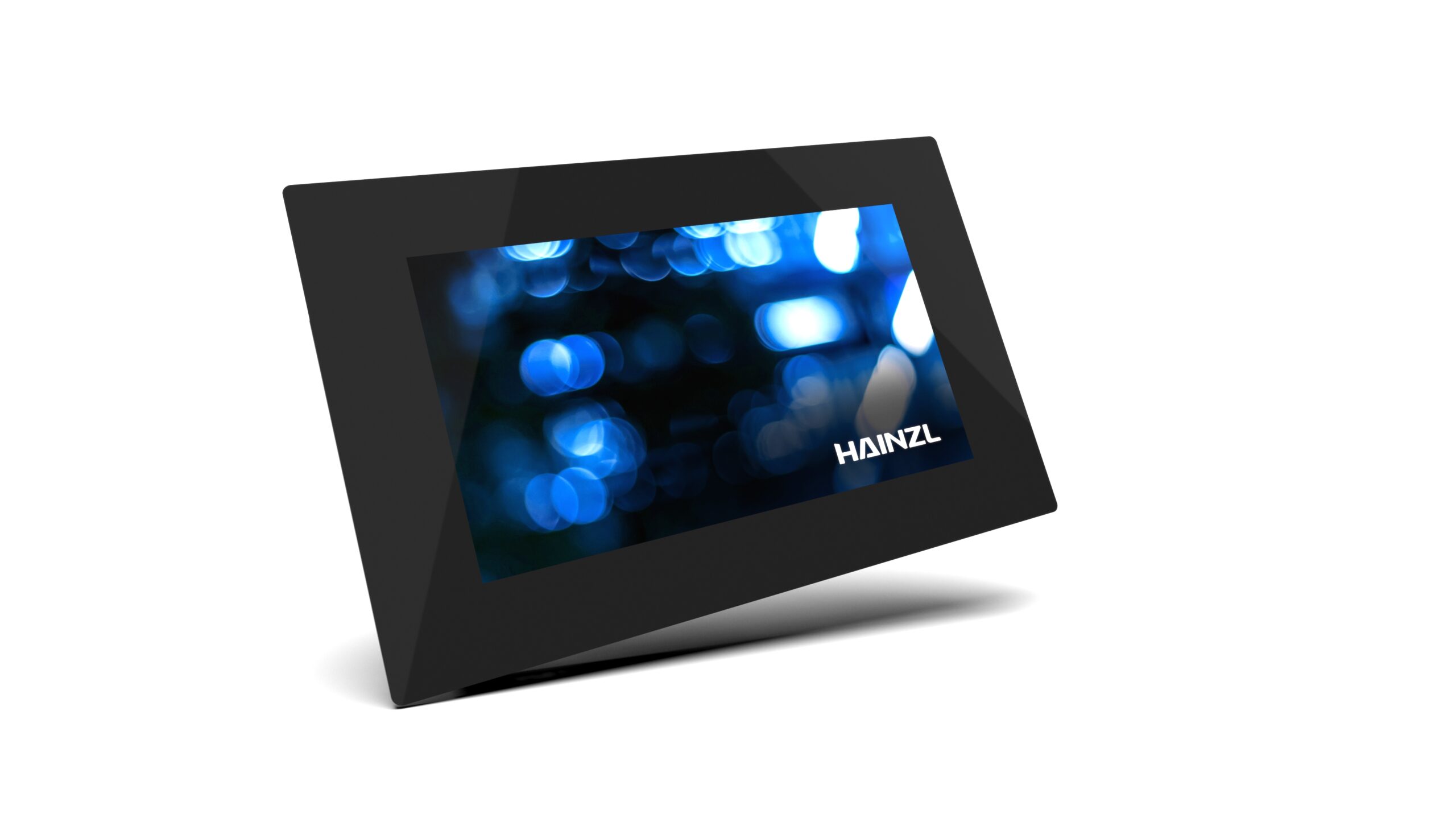

7“ OPERATING MODULES

WITH LINUX FOR VERSATILE CONTROL SYSTEMS

The 7-inch touch display with powerful processor and Linux operating system offers a flexible and robust solution for modern control applications in industry and building automation.

Technical highlights

// Display: 7-inch TFT with capacitive touch
// Processor: Quad-core up to 1.2 GHz
// Memory: 512 MB DDR4 RAM, expandable up to 2 GB, 4 GB flash
// Interfaces: Ethernet, USB, CAN bus, RS485
// Power supply: 12-30 VDC

Areas of application

The system offers a powerful and flexible platform for modern control and automation solutions. Seamless integration into existing infrastructures enables efficient and future-proof applications.
Typical application examples: Cash register systems, smart home solutions, air conditioning units, ventilation technology, agricultural technology

7“ OPERATING MODULES

WITH LINUX FOR VERSATILE CONTROL SYSTEMS

The 7-inch touch display with powerful processor and Linux operating system offers a flexible and robust solution for modern control applications in industry and building automation.

Technical highlights

// Display: 7-inch TFT with capacitive touch
// Processor: Quad-core up to 1.2 GHz
// Memory: 512 MB DDR4 RAM, expandable up to 2 GB, 4 GB flash
// Interfaces: Ethernet, USB, CAN bus, RS485
// Power supply: 12-30 VDC

Areas of application

The system offers a powerful and flexible platform for modern control and automation solutions. Seamless integration into existing infrastructures enables efficient and future-proof applications.
Typical application examples: Cash register systems, smart home solutions, air conditioning units, ventilation technology, agricultural technology

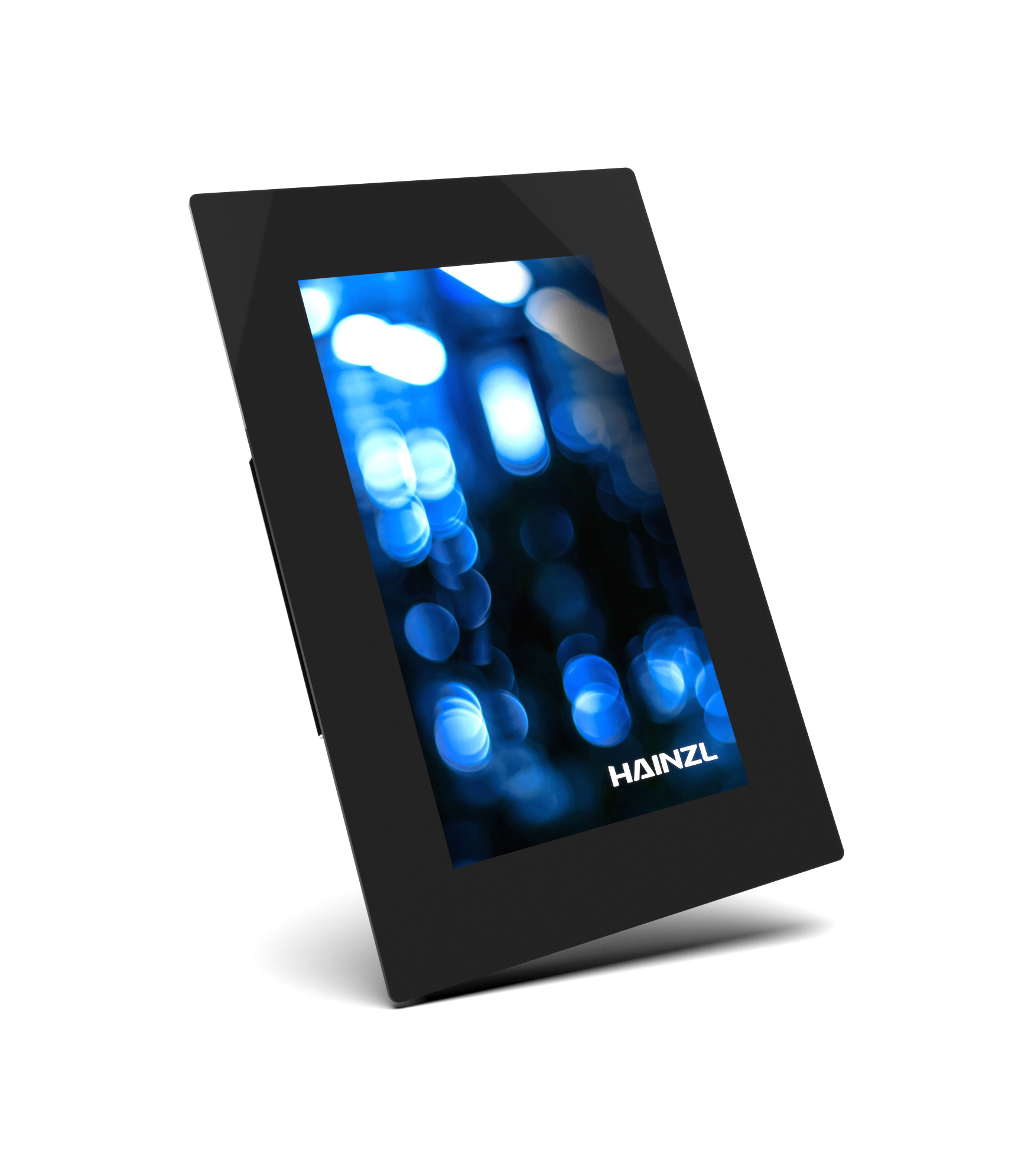

10“ OPERATING MODULES

WITH LINUX FOR MODERN CONTROL SYSTEMS

Our 10-inch touch panel combines powerful hardware with a flexible Linux operating system. It offers an intuitive user interface and versatile interfaces for use in sophisticated control solutions.

Technical highlights

// Display: 10-inch TFT with capacitive touch
// Processor: Quad-core up to 1.2 GHz
// Memory: 512 MB DDR4 RAM, expandable up to 2 GB, 8 GB flash
// Interfaces: Ethernet, USB, RS485, CAN bus
// Power supply: 12-30 V DC

Areas of application

With its powerful architecture and flexible software basis, the system is ideal for demanding control and automation tasks. It integrates effortlessly into existing systems and supports a wide range of applications.
Typical application examples: Building automation, energy technology, transportation technology, warehouse automationv

10“ OPERATING MODULES

WITH LINUX FOR MODERN CONTROL SYSTEMS

Our 10-inch touch panel combines powerful hardware with a flexible Linux operating system. It offers an intuitive user interface and versatile interfaces for use in sophisticated control solutions.

Technical highlights

// Display: 10-inch TFT with capacitive touch
// Processor: Quad-core up to 1.2 GHz
// Memory: 512 MB DDR4 RAM, expandable up to 2 GB, 8 GB flash
// Interfaces: Ethernet, USB, RS485, CAN bus
// Power supply: 12-30 V DC

Areas of application

With its powerful architecture and flexible software basis, the system is ideal for demanding control and automation tasks. It integrates effortlessly into existing systems and supports a wide range of applications.
Typical application examples: Building automation, energy technology, transportation technology, warehouse automationv

PRODUCTS

FOR ALL MACHINE AND DEVICE MANUFACTURERS WHO PRODUCE PRODUCTS IN SERIES
AND WANT TO OPTIMIZE THEM AFTER A SUCCESSFUL START.
Our operating units are characterized by state-of-the-art processor technology and the Linux operating system. On the user side, our user-friendly and clearly arranged operating units impress with modern touch operation and color displays.

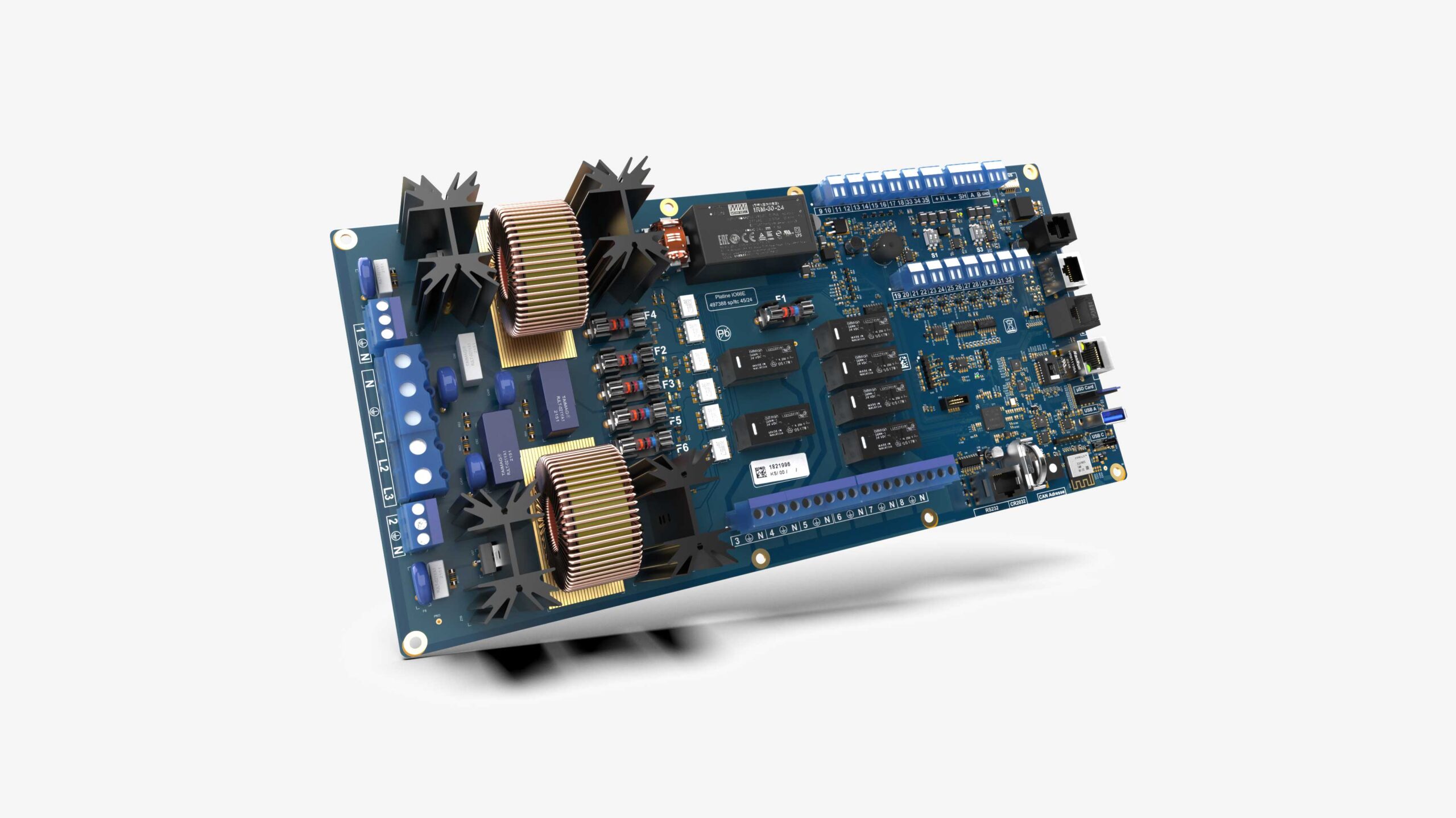

We develop our control systems quickly and cost-effectively from a large selection of software and hardware modules. At the customer's request, we are happy to combine the control board with an operating option.
The remote maintenance package from HAINZL is a coordinated overall concept: We control embedded systems - from the device level to the server and operator level.
